SaniPack

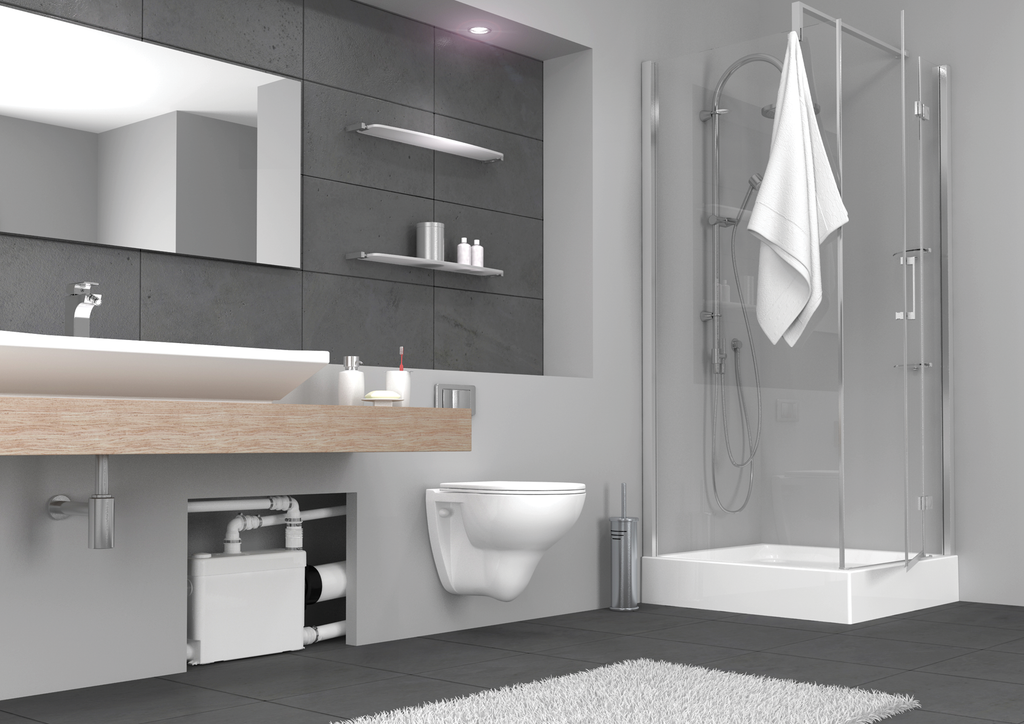

You can have a sleek, European styled bathroom just about anywhere you want. The SaniPack macerator unit is designed to work with the wall hung toilet of your choice, and can also be connected to a bathroom sink and/or shower. The macerator, tank and plumbing system are all behind the wall, giving your bathroom maximum beauty and sleekness.
The powerful SaniPack pump can get this discharge to your sewer line as far as up to 15 feet above and/or 150 feet away from the unit. It allows you to build a beautiful, comprehensive bathroom in a basement or just about anywhere else, with no need to break open floors or do any other major, costly construction or to install a sump/ejector pump. The discharge from all of connected fixtures gets liquefied by the grinder, and is then pumped towards the sewer line through a conventional '1 inch above ground pipe system.
Special Features:
SaniPack offers an optional SaniAlarm system that notifies you if the water level in the unit gets too high, which could indicate a malfunction.
Maintenance/Warranty:
For optimal maintenance, purchase the optional descaler, and use it to clean your unit once every one to six months as recommended, depending on how hard your water is. Saniflo macerator units have a 2 year warranty.
Motor RPM | 3600 |
Horsepower | 0.3 |
Electrical Supply | 110-115V; 60Hz; |
Flow rate at max head USG MIN | 9 ft:22 usg/min;3 ft:26 usg |
Amperage | 5.4 AMP |
Discharge Pipe Diameter | 3/4" diameter |
Vertical Discharge | 9 ft |
Horizontal Discharge | 100 ft |
Gravity fall on horizontal installations | 1/4" per ft |
Normal Running Time WC | 10-15 seconds |
Maximum Temperature | 104̴ ÁF |
Water Consumption | 1.3 US gal -WC Dependable |
Dimensions (measured from floor level) | H11" x W16̴_" x D4̴_" |
Materials | Polypropylene, C.R.P., stainless steel, Neoprene |
